Software Application Architectures
An Introduction to Client-Server Architecture
1 An Introduction to Software Application Architectures π’
Software application architecture is the blueprint of a software system. It defines the structure of the system, including its components, their relationships, and the principles and guidelines governing their design and evolution. A well-designed architecture ensures that an application is robust, scalable, and maintainable.
There are many architectural patterns, but one of the most fundamental and widely used is the client-server architecture. This is a great choice for applications that separate the user interface from the core logic and data.
2 Client-Server Architecture π€
Client-server architecture is a distributed computing model where clients request services or resources from servers. The client is a program or device that initiates requests, while the server is a program or device that provides those services.
In a client-server model, your client-side application (the front end) will handle the user interface and interactions. The server-side application (the back end) will be responsible for storing and managing data, as well as handling business logic. The client and server communicate over a network, such as the internet.

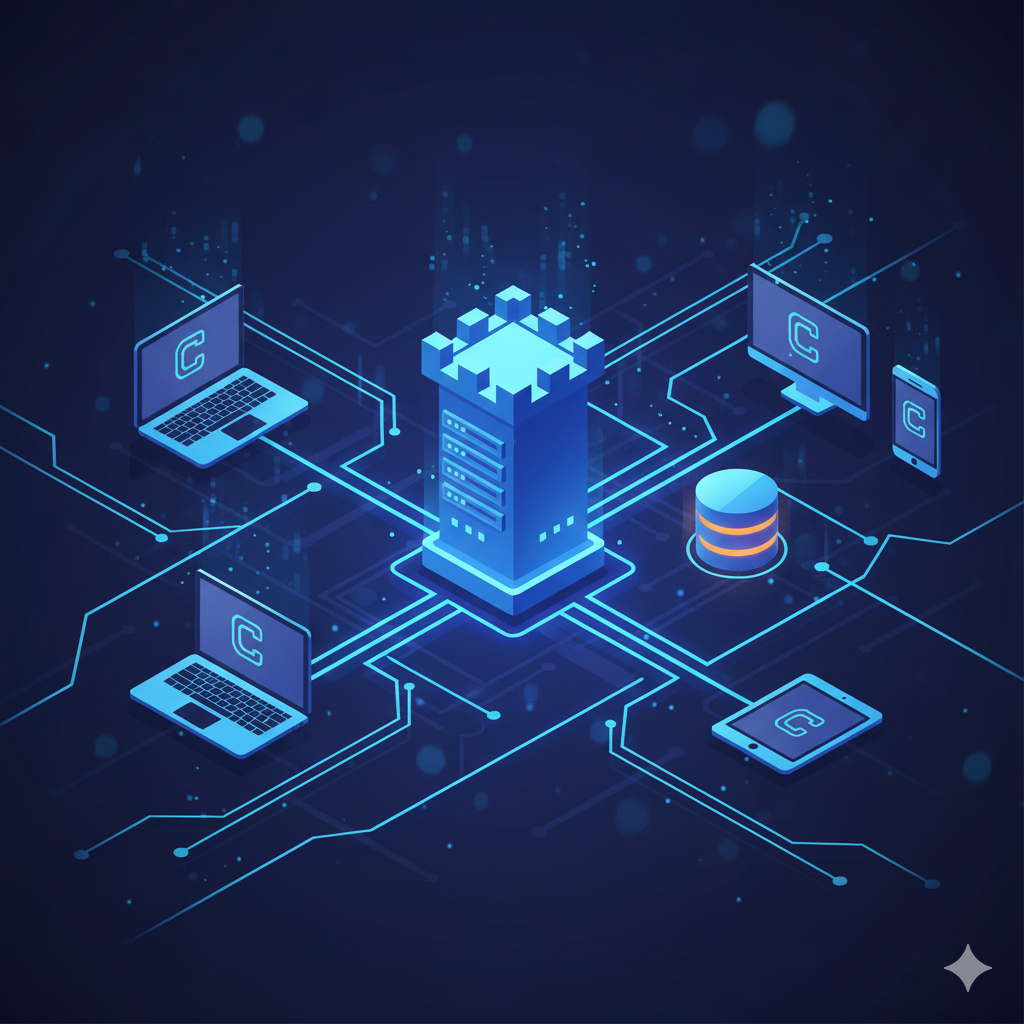

[Image of client-server architecture diagram]
Benefits of Client-Server Architecture π
Using a client-server architecture offers several key advantages:
- Centralized Data Management: All data is stored on a central server, making it easy to manage, secure, and back up. This also ensures data consistency and integrity across all clients.
- Scalability: You can scale your application by upgrading the server hardware or distributing the workload across multiple servers. This allows your app to handle a growing number of users and data without significant performance issues.
- Modularity: The separation of concerns between the client and server allows development teams to work on each part independently. The client-side developers can focus on the user experience, while the server-side team can concentrate on the business logic and data management.
- Security: By centralizing data on the server, you can implement robust security measures like firewalls, authentication, and encryption at a single point, protecting all data from unauthorized access.
- Resource Sharing: The server can provide shared resources and services to multiple clients simultaneously, eliminating the need for each client to have its own copy of the data or logic.
3 Security Risks in Client-Server Architecture π
While client-server architecture offers enhanced security through centralization, it also introduces specific risks that you must address.
- Single Point of Failure: If your server goes down, the entire application becomes unusable. You can mitigate this risk with redundancy and load balancing.
- Denial-of-Service (DoS) Attacks: Attackers can flood the server with requests to overload it and make it unavailable to legitimate users. Distributed Denial-of-Service (DDoS) attacks use a network of compromised machines to amplify this effect.
- SQL Injection: If user input is not properly validated, an attacker can inject malicious SQL commands into your queries, potentially allowing them to access, modify, or delete data in your database.
- Cross-Site Scripting (XSS): Malicious scripts can be injected into your application and executed in a userβs browser, leading to session hijacking, data theft, or other attacks.
- Man-in-the-Middle (MitM) Attacks: Attackers can intercept communication between the client and server, especially over an unsecured network, to eavesdrop on or alter data. Using encryption (like HTTPS) is crucial to prevent this.
4 Types of Client-Server Architectures ποΈ
The client-server model can be implemented in various ways. The following are some common architectures, each with its own trade-offs:
Two-Tier Architecture (Client-Server with API) π»π±
In a two-tier architecture, the client (e.g., a desktop or mobile application) communicates directly with a database server. This is a simple model where the business logic resides either entirely on the client or in a stored procedure on the database.
- Example: A local application written in Java using a Java Database Connectivity (JDBC) connection to a database.
- General Relevance: This is a great starting point for a simple, non-web-based application. However, it can be less scalable and secure since clients connect directly to the database. It is not an ideal model for a modern web app.
Three-Tier Architecture (Web App with APIs) π
This is the most common model for modern web applications. It introduces a third layer, the application server, which sits between the client and the database. The client makes a request to the application server, which handles the business logic and then communicates with the database.
- Client: A web browser running a Single-Page Application (SPA) or a mobile app.
- Application Server (Middle Tier): A back end (e.g., using Spring Boot) that exposes a RESTful API.
- Database Server: A separate database (e.g., PostgreSQL, MongoDB) that stores the data.
- General Relevance: This is a highly relevant architecture. The back-end logic, written in Java with a framework like Spring Boot, would handle all operations and expose them via an API. The front end could be a JavaScript-based SPA like React or Vue.js, which consumes this API.
Progressive Web Apps (PWAs) βοΈ
PWAs are a hybrid of regular web pages and mobile applications. They are built using web technologies like HTML, CSS, and JavaScript but can be installed on a userβs device. They offer features like offline functionality and push notifications.
- How it works: A PWA client interacts with the server through APIs. The PWA caches resources locally, allowing for a faster and more reliable experience, even with a poor or nonexistent network connection.
- General Relevance: A PWA is an excellent choice for a wide range of applications. It provides a native app-like experience with offline capabilities, which is perfect for users who need to use the application without a constant internet connection.
Other Architectures π
While the client-server model is a solid choice, you should be aware of other architectures that might be relevant for different parts of your application:
- Microservices Architecture: Instead of one large application server, you break down the back end into several smaller, independent services. This offers even greater scalability and flexibility.
- Event-Driven Architecture: Components communicate by producing and consuming events. For example, when an action is performed, an event is sent to a queue, and another service picks it up to process it. This is great for handling asynchronous tasks and improving responsiveness.
